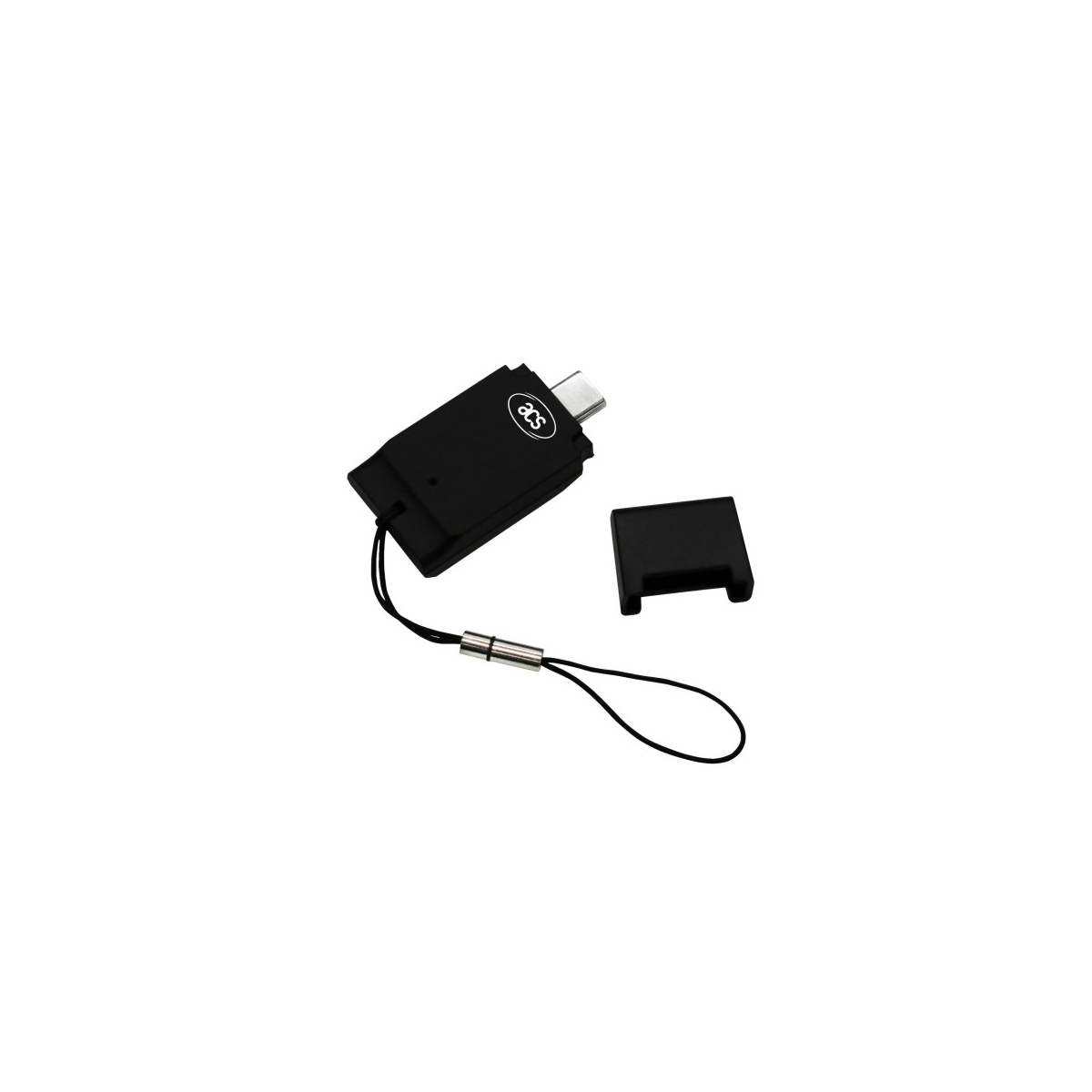

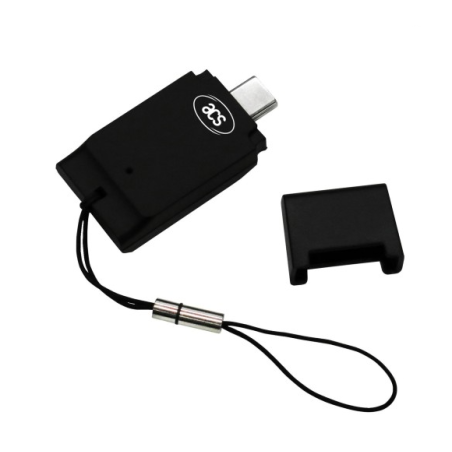

ACS ACR39T-A5 USB-C Smart Card Reader

ACR39T-A5 – SIM Card Reader with USB Type-C Interface
The ACR39T-A5 is a modern contact smart card reader in SIM format that combines advanced technology with a compact, elegant design. It has been designed to meet the demands of modern smart card–based applications such as e-banking, electronic signatures, and access control.

Thanks to the USB Type-C (USB Full Speed) interface and data transfer speeds of up to 600 kbps, the ACR39T-A5 ensures fast and stable performance. It supports microprocessor and memory cards compliant with ISO 7816 Class A, B, and C (5 V, 3 V, 1.8 V) and protocols T=0 and T=1 — ideal for environments where reliability, security, and mobility are crucial.

The reader is PC/SC and CCID compliant, allowing plug-and-play integration with most operating systems without the need for additional drivers. The ACR39T-A5 works with Windows®, Linux®, macOS®, Solaris™, and Android™ (version 3.1 and above).

Key Features:

• Compact SIM card reader with USB Type-C interface

• Supports ISO 7816 Class A/B/C (5 V, 3 V, 1.8 V)

• Supports T=0 and T=1 protocols for wide smart card compatibility

• Data transmission speed up to 600 kbps

• PC/SC and CCID compliant – Plug & Play

• Compatible with Windows®, Linux®, macOS®, Solaris™, Android™

• Lightweight (7 g) and compact dimensions (4.95 × 2.15 × 0.9 cm)

Technical Specifications:

• Interface: USB 2.0 Full Speed (Type-C)

• Supported cards: ISO 7816 A/B/C, T=0, T=1, memory cards

• Read/write speed: up to 600 kbps

• Product dimensions: 4.95 × 2.15 × 0.9 cm

• Net weight: 0.007 kg

• Country of origin: China

• Certifications: ISO 7816, USB Full Speed, PC/SC, CCID, EMV™ Level 1, CE, FCC, WEEE, RoHS, REACH

• Manufacturer: ACS (Advanced Card Systems Ltd)
