PocketMate II Micro-USB Driver Card Reader – ACS ACR39U-ND

ACR39U PocketMate II – Pocket smart card reader (Micro-USB)

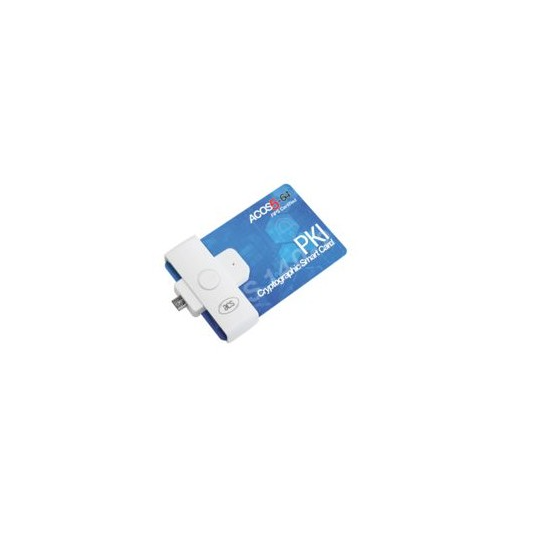

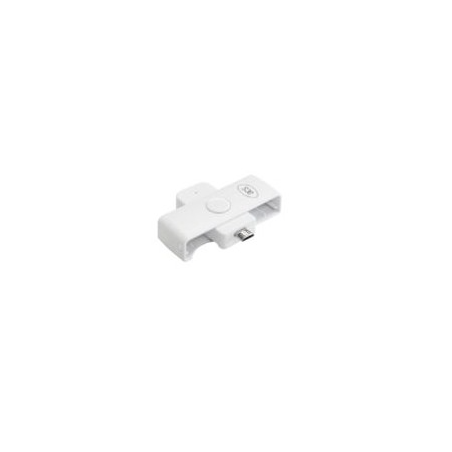

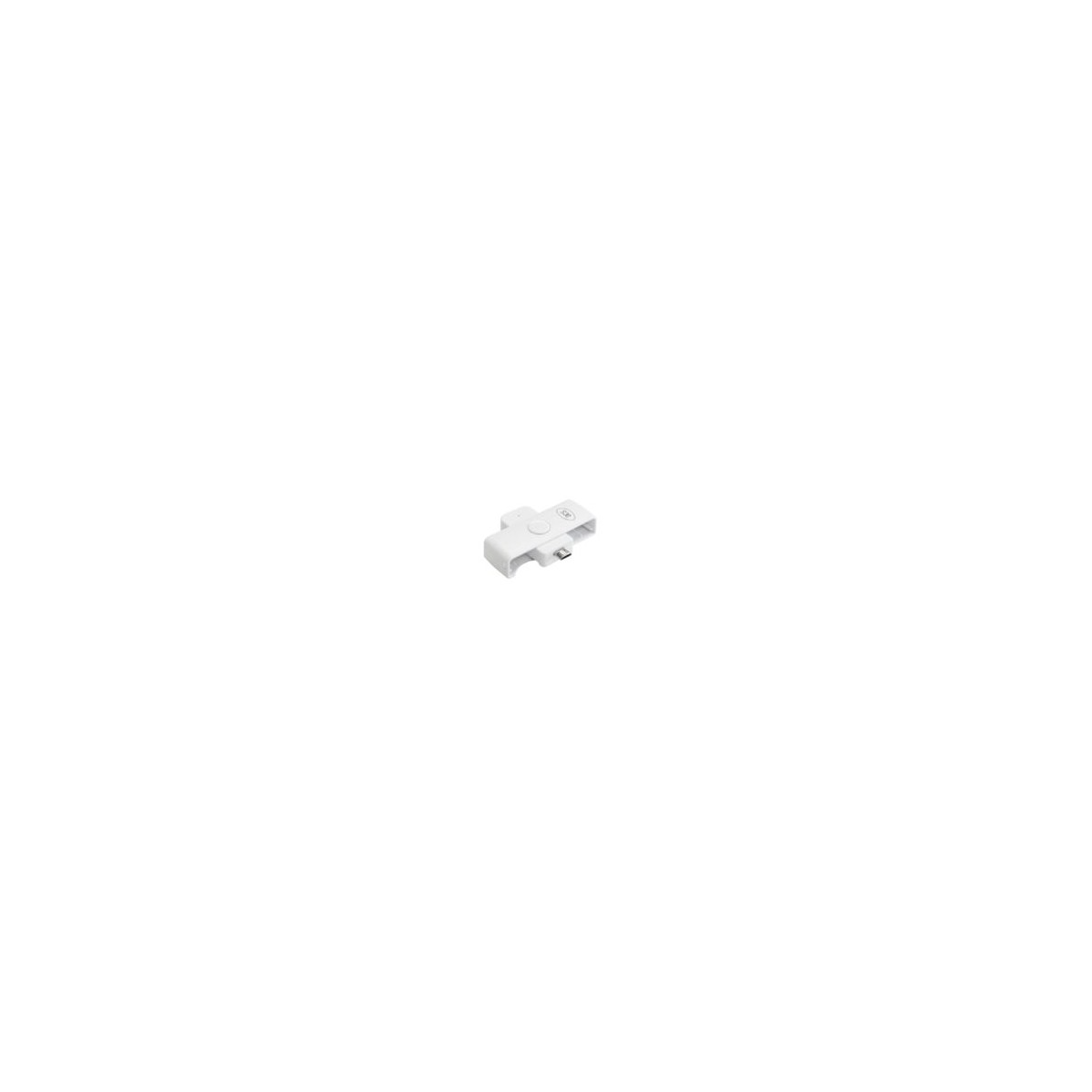

The ACR39U PocketMate II (Micro-USB) is a compact contact smart card reader from ACS—only slightly larger than a USB flash drive—which unfolds with a single motion to reveal a full-size card slot. Designed for demanding card-based applications, it combines reliability with portability.

The Micro-USB version ensures compatibility with older mobile devices and accessories that use this type of port. The reader is based on the proven ACR39 core and supports microprocessor cards and memory cards compliant with the ISO 7816 standard.

Key features:

• Swivel mechanism — full-size card slot when unfolded

• Micro-USB connector — compatibility with devices using micro-USB

• ISO 7816 Class A / B / C support (5 V, 3 V, 1.8 V)

• Support for T=0 and T=1 protocols

• Support for specialized cards: CAC, SIPRNET, MyKad

• Mechanical durability: 100,000 card insertion cycles

• Plug-and-play: CCID and PC/SC compliant (drivers for Windows, Linux, macOS, Android)

Applications

PocketMate II is suitable for PKI and PIV systems, physical and logical access control, electronic signature solutions, as well as online banking and government identification applications.

Technical specifications (selected)

Interface
USB 2.0 Full Speed, Micro-USB (CCID)

Standards
ISO 7816 Parts 1–3; PC/SC; CCID; EMV Level 1 (selected models)

Protocols
T=0, T=1; Memory Card Support

Durability
Mean Cycles Between Failures (MCBF): 100,000

Dimensions (product)
Approx. 58 × 20 × 14 mm (slot unfolded)

Net weight
Approx. 0.0097 kg

Operating temperature
0 °C to 60 °C

Tariff code
8473502000

UNSPSC
43211728

Driver card (tachograph) note:

Some stores and distributors offer ACR39 variants labeled as “driver card readers” or sell bundles compatible with tachograph driver card software. The reader itself technically supports ISO 7816-compliant cards; however, proper reading of tachograph cards requires appropriate software and, in some cases, a specific model configuration.

Certifications / compliance: EN/IEC 60950, ISO 7816, USB Full Speed, PC/SC, CCID, EMV Level 1 (selected models), CE, FCC, WEEE, RoHS 2, REACH, Microsoft® WHQL.
