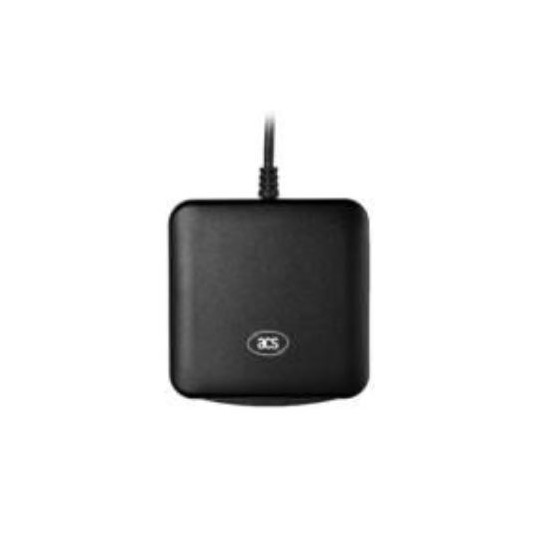

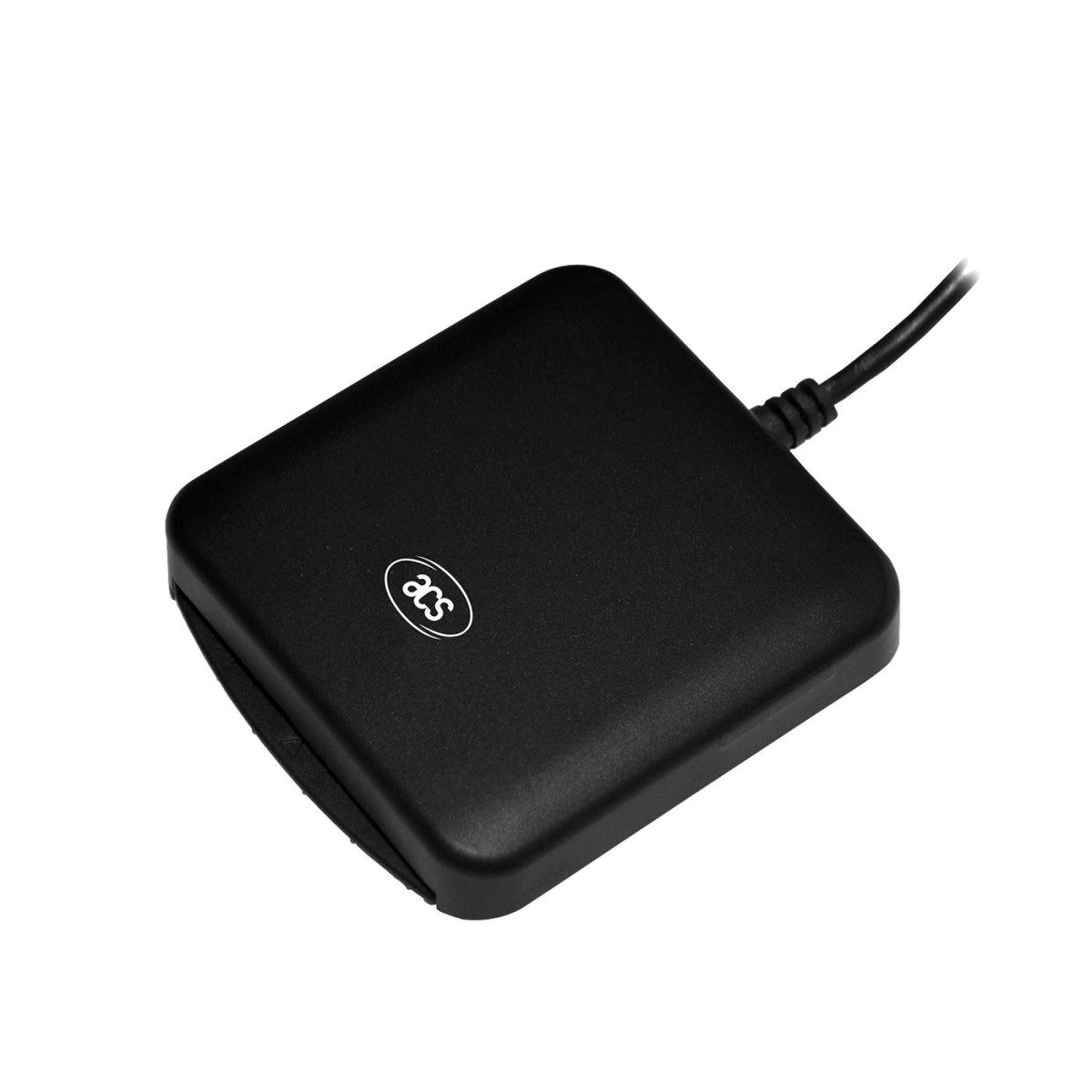

Smart Card Reader USB-A ACS ACR39U-U1

ACR39U-U1(ACSA) – Elegant Next-Generation Smart Card Reader

The ACR39U-U1 combines modern design with advanced technology, created for professional applications in authentication systems, e-banking, and e-government solutions. With its compact form and matte black housing, the device fits perfectly in any office or mobile environment.

A high-quality controller ensures fast and secure data processing from microprocessor cards. The ACR39U-U1 supports ISO 7816 standards (Classes A, B, and C), T=0/T=1 protocols, and is fully compliant with CCID and PC/SC, ensuring seamless operation with most operating systems — without requiring additional drivers.

Key Features:

• USB Type-A interface (USB Full Speed, Plug & Play)

• CCID and PC/SC compliant – easy integration and portability

• Supports ISO 7816 (Parts 1–4), Class A/B/C (5 V, 3 V, 1.8 V)

• Compatible with Windows®, Linux®, Android™

• Cable length: 1.5 m

• Compact dimensions: 7.22 × 6.9 × 1.45 cm

• Stylish matte black finish

Technical Specifications:

• Interface: USB Type-A (USB 1.1/2.0 Full Speed)

• Compliance: CCID, PC/SC, CT-API (wrapper)

• Supported cards: ISO 7816 Class A/B/C, T=0/T=1

• Power supply: From USB port (5 V)

• Cable length: 1.5 m

• Dimensions: 7.22 × 6.9 × 1.45 cm

• Weight: 0.05 kg

• Operating temperature: 0°C – 60°C

• Certifications: EN 60950, ISO 7816, EMV™ L1, CE, FCC, WEEE, RoHS, REACH, TAA, VCCI, J-LIS, PBOC, BIS, Microsoft® WHQL
