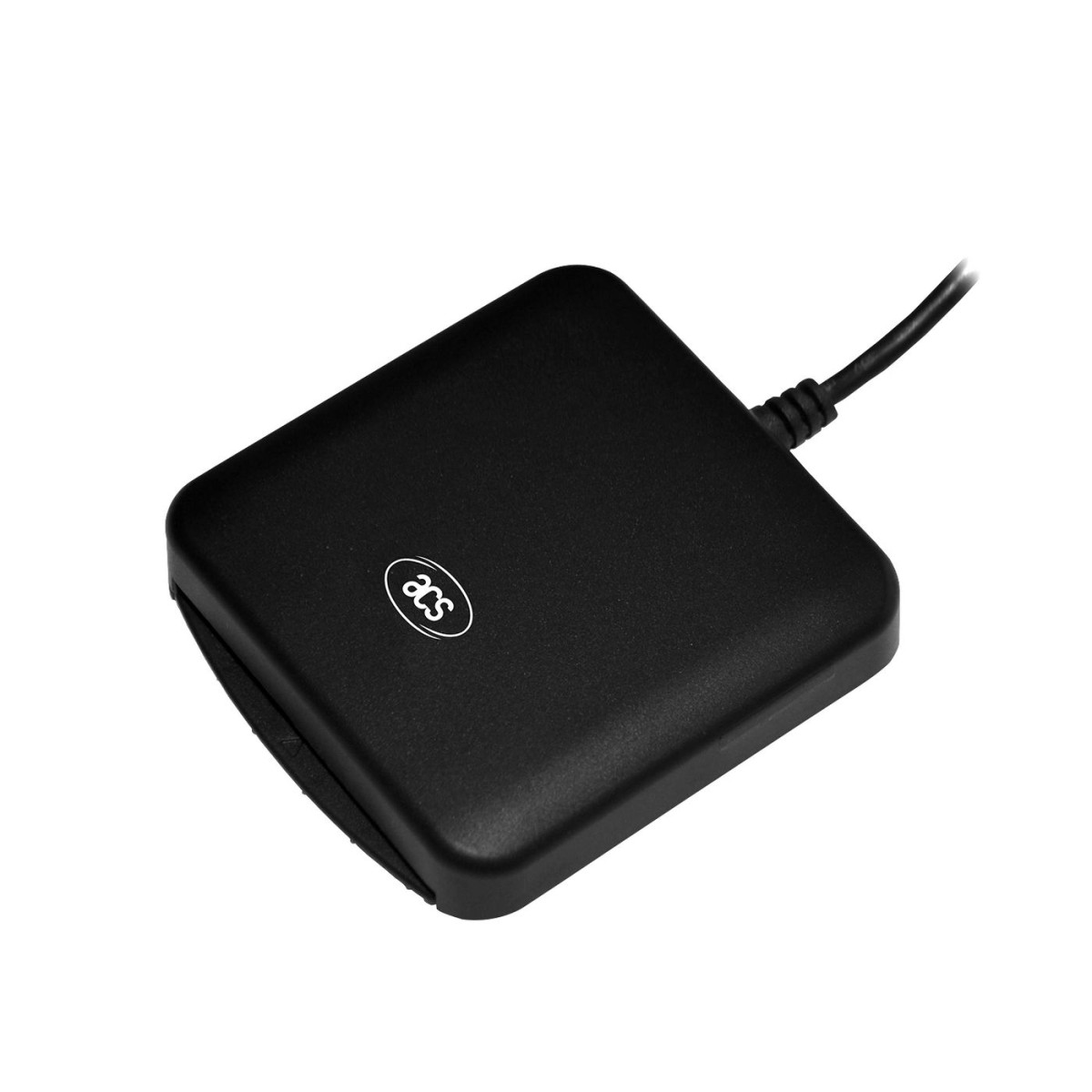

Smart Card Reader USB-C ACS ACR39U-UF

ACR39U-UF – Smart Card Reader with USB Type-C Interface
The ACR39U-UF is a modern contact smart card reader from ACS, designed to meet the latest USB connectivity standards. Equipped with a USB Type-C port, it offers a reversible connector and full compatibility with mobile devices, computers, and next-generation systems.

Built on the proven ACR39U technology core, it ensures reliability and data security. The reader supports microprocessor cards compliant with ISO 7816 (Class A/B/C), memory cards, and specialized cards such as CAC, PIV, SIPRNET, and J-LIS. With T=0 and T=1 protocol support, it is ideal for secure authentication and identity verification environments.

The integrated LED indicators show the device’s status, while its matte black compact housing ensures durability and a professional appearance. Plug-and-Play CCID compatibility guarantees easy integration without additional drivers.

Key Features:

• USB Type-C interface (USB 2.0 Full Speed)

• Supports ISO 7816 Class A/B/C (5 V, 3 V, 1.8 V)

• Supports CAC, PIV, SIPRNET, J-LIS cards

• T=0 and T=1 protocols, memory card support

• Built-in LED indicators

• CCID, PC/SC, EMV™ Level 1, and Microsoft® WHQL compliant

• Compatible with Windows®, Linux®, macOS®, Android™

• Cable length: 1.5 m, color: black

Technical Specifications:

• Interface: USB Type-C (USB 2.0 Full Speed)

• Standards: ISO 7816 (Parts 1–3), Class A/B/C

• Protocols: T=0, T=1, Memory Card Support

• Operating frequency: 4.8 MHz

• Power supply: 5 V (USB powered)

• Current consumption: 0.05 A (max)

• Dimensions: 7.22 × 6.9 × 1.4 cm

• Weight: 0.09 kg

• Operating temperature: 0°C – 60°C

• Certifications: EN 60950, ISO 7816, EMV L1, CE, FCC, WEEE, RoHS 2, REACH, TAA, J-LIS, VCCI, PBOC, Microsoft® WHQL

• Manufacturer: ACS (Advanced Card Systems Ltd)
