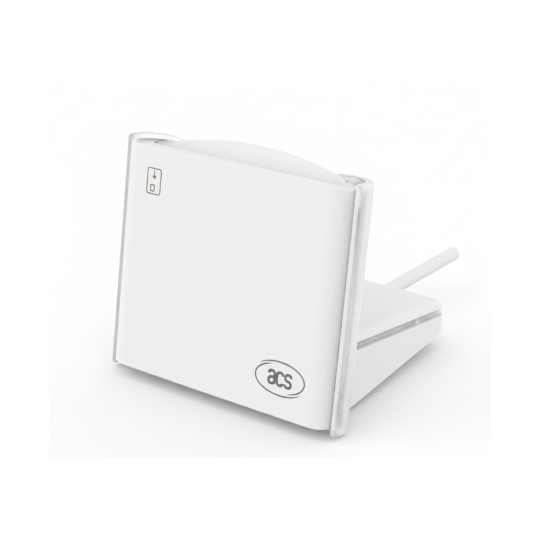

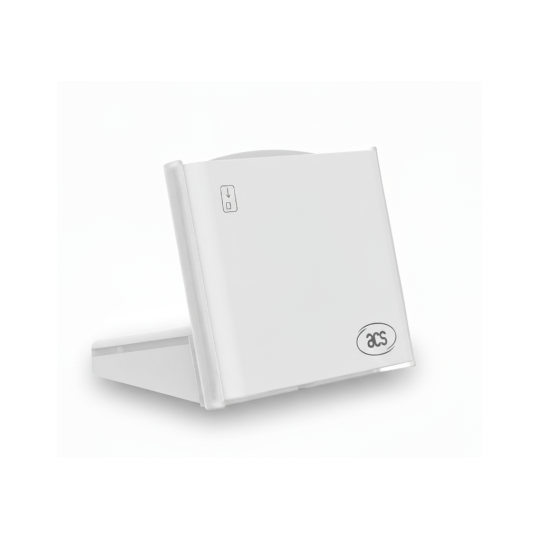

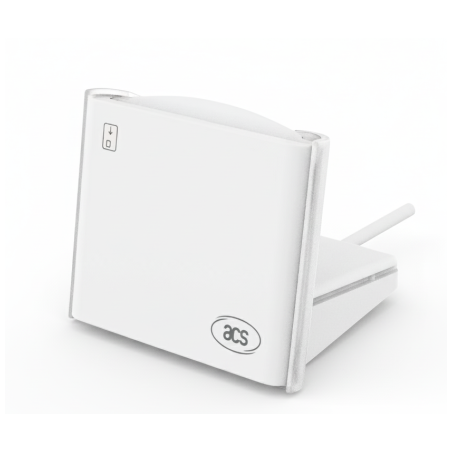

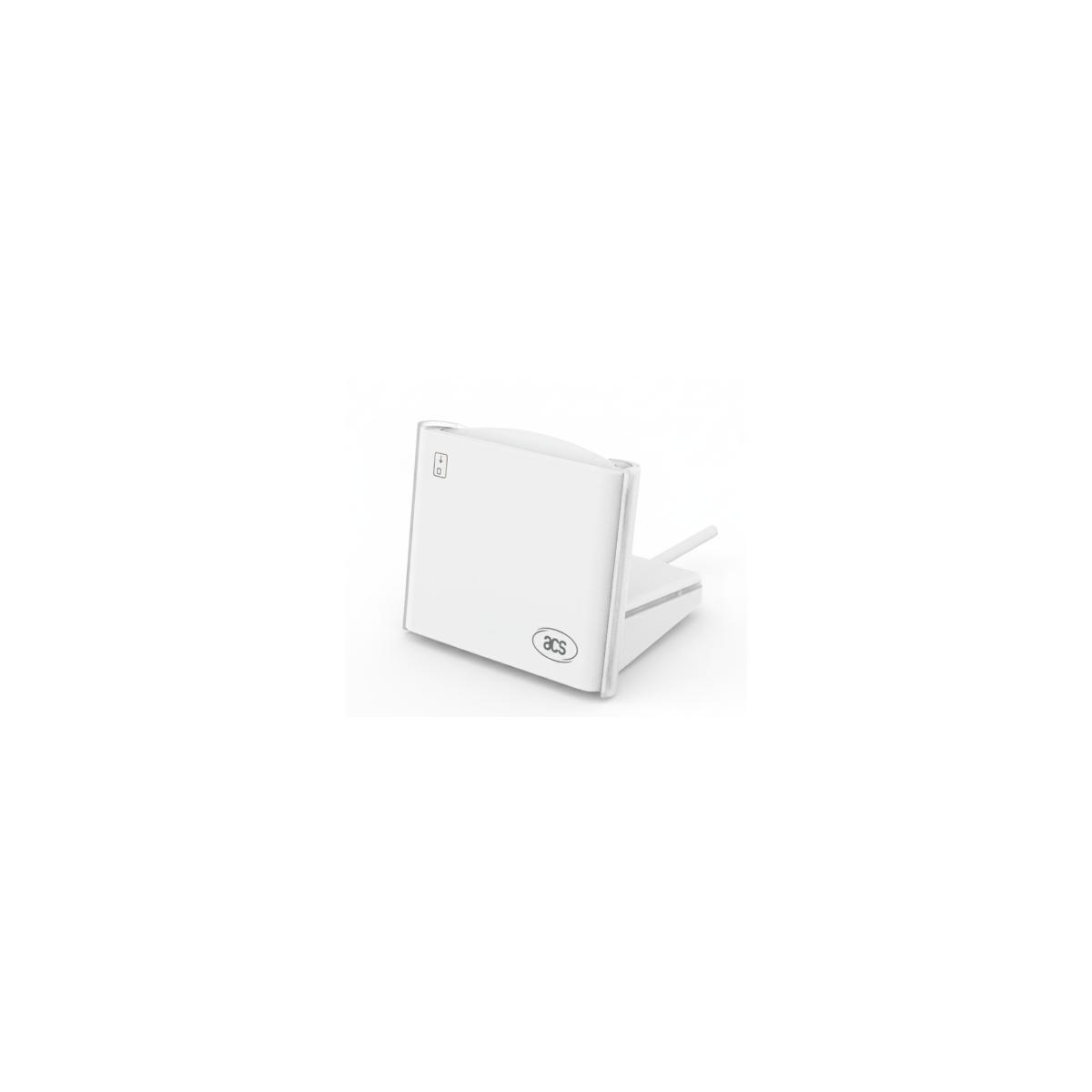

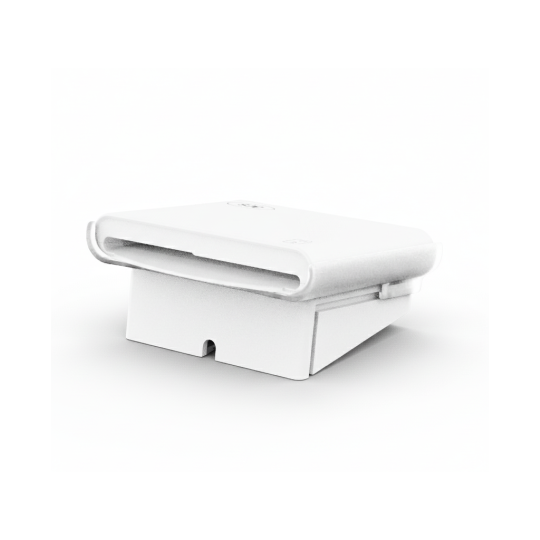

ACS ACR40U-B1 Contact Smart Card Reader USB-A/USB-C

Applications:
✓ e-Government (public administration services)
✓ e-Banking and e-Payments
✓ e-Healthcare
✓ Public Key Infrastructure (PKI)
✓ Network security
✓ Access control
✓ Loyalty programs

Key Features:
✓ Supports ISO 7816 Class A, B, and C (5 V, 3 V, 1.8 V) contact cards
✓ Supports microprocessor cards (T=0 and T=1 protocols)
✓ Supports memory cards and special cards (MyKad, CAC, J-LIS, SIPRNET)
✓ Firmware upgradeable
✓ Local user data storage
✓ Flexible card mounting — vertical or horizontal (stand included)
✓ Clear LED indicators for reader and card status

Compliance and Standards:
The ACR40U is compliant with CCID, PC/SC, and Microsoft® WHQL, ensuring smooth system integration.

Technical Specifications:
Interfaces: USB Type-A and USB Type-C
Supported Cards: ISO 7816 Class A/B/C, microprocessor (T=0/T=1), memory cards, MyKad, CAC, J-LIS, SIPRNET
Additional Functions: Firmware upgrade, local data storage, LED indicators
Mounting Configurations: Vertical and horizontal — stand included
System Compatibility: Windows®, Linux®, macOS, iOS, iPadOS, Android™, Solaris™

Summary:
The ACR40U combines a compact design with powerful functionality for secure smart card operations — ideal for government systems, electronic banking, PKI, and access control.
Accessories: Mounting stand (vertical/horizontal).
